Thanks to Jon (Tele on the forums) for telling me the pot and capacitor values.

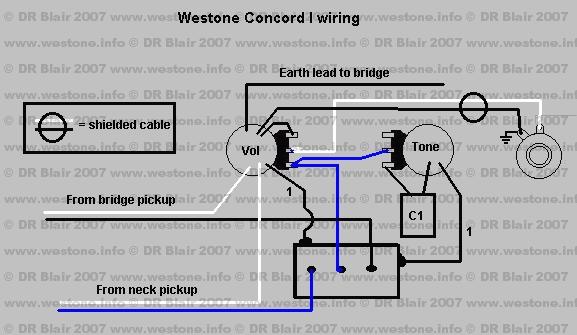

This wiring diagram is taken from
a 1984 Concord I
The pots are 250K log/audio, the tone capacitor is 0.047
microfarad Mylar.
Pickup resistance - neck 4.74K, bridge 4.73K
1 - these wires are soldered to the body of the pickup selector switch
