Clipper Six wiring

Volume pot - 500k log/audio
Switches - SPDT (on-on) toggles

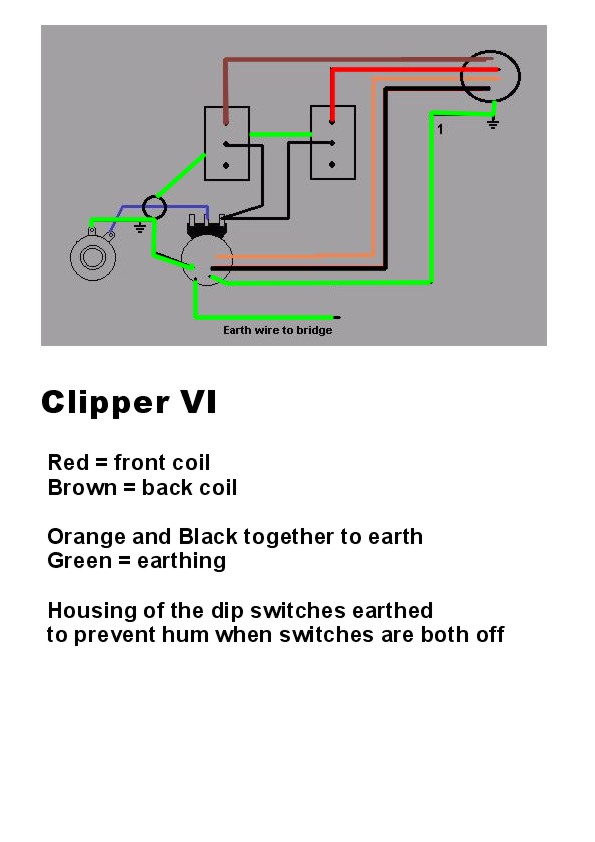

Thanks to Dick Zoeteweij for this wiring diagram -
