Westone Paduak I wiring

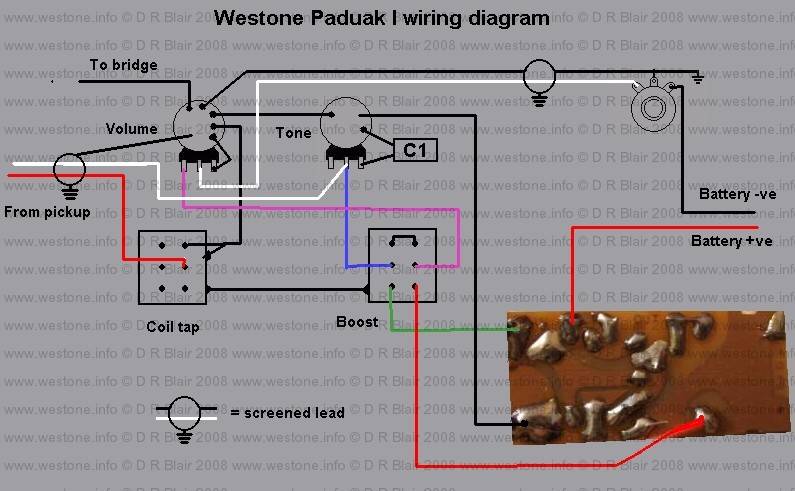

This  wiring diagram is taken from a 1981 Paduak I
The pots are 500K log/audio, the tone capacitor is 22nF Mylar.

Both switches are DPDT. An SPDT switch can be used for the coil tap, it does not need a DPDT switch..
The battery negative (Black) wire connects to the switched terminal on the jack socket.
Pickup impedance is 11.62K (Humbucker), 5.74K when coil tapped.


Page last updated 9th June 2008
