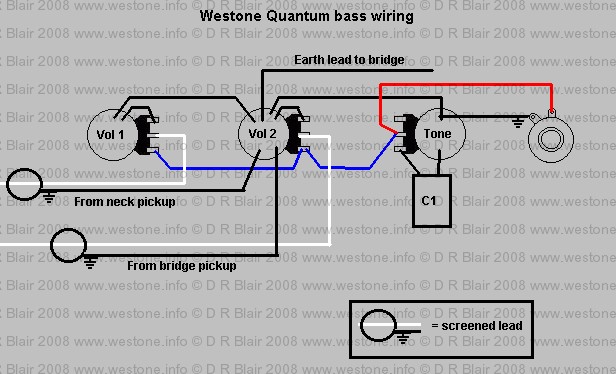

Westone Quantum bass wiring

This  wiring diagram is taken from a 1984 Quantum bass. The pots are all 250K log/audio, the tone capacitor is 0.047 microfarad Mylar.




Page last updated 10th November 2008
