Original Printed Circuit Board

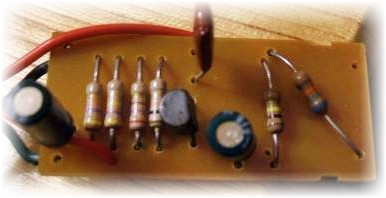

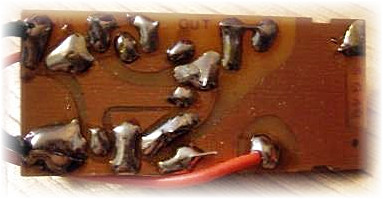

Top and Bottom (click to enlarge)
CLICK HERE for connection details to the pots and switches for the original PCB
Revised PCB foil pattern | mirrored
This one is two thirds the size of the original.
It can easily be soldered straight onto the terminals of the on/off switch
CLICK HERE for more information on PCB making

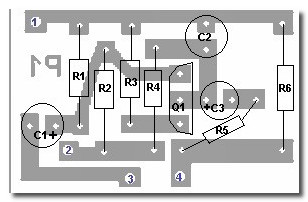

Components Identification
Component list
C1, C3 1uF 50v electrolytic
C2 10nF Mylar
Resistors (All 1/4W 5%)
R1 – 47K R2 – 470K
R3 – 270R
R4 – 10K
R5 – 100K
R6 – 68K
Q1 – 2SC1327 (Obsolete, may be hard to find)
External connections 1 – earth 2 +9v 3 – input 4 – output
Testing
- Set the switch to the off/bypass position
- Set amp gain and volume as low as they will go, so you can only just hear the guitar
This is to prevent possible damage to the amp – and your hearing, the circuit gives a ludicrous amount of boost! - Connect the battery (Single PP3) and turn the booster on
To reduce the level of boost alter the value of R6 (68k) — lower values give less boost.
It is strongly recommended to replace R6 with a 20k/22k resistor and 47k pot wired in series to give variable boost
